5-axis force vise grepos-5X

The 5-axis force vise grepos-5X guarantees optimum accessibility for “real” 5-axis complete/simultaneous machining due to its special design with a low base body and the high jaws. Due to its lever quick clamping, workpieces are clamped in tension within seconds, which additionally prevents deflection of the base body. The clamping force can be controlled and continuously adjusted from 5 – 40 kN.

Lever quick clamping 160°

Variety of applications

Mechanical force transmission

Optimum accessibility

High precision - fixed jaw principle

Stepless clamping force adjustment

Completely encapsulated clamping force

Advantages that will
inspire you

✓ Lever quick clamping
Simple, fast and safe clamping of the workpiece

✓ Encapsulated power transmission box
dirt-resistant and low-interference power transmission

✓ Stepless clamping force adjustment
Simple and quick force adjustment from 10 – 100 % of the clamping force

✓ 5-axis clamping vise
optimal accessibility for the tool from 5 sides

doubble dash gressel

Our designs

5-axis-force-tightener-grepos-5x
grepos-5X
Standard version with reversible jaws grip 3 mm and step smooth 16 mm on both sides
grepos-5X-S
low version with standard top jaws
grepos-5X
Standard version base body and tie rod extension
grepos-5X-C
Standard version with fixed jaws mobile with aluminum top jaws
grepos-5X-C
Standard version with fixed jaws mobile with top jaws 5A, width 65 mm
grepos-5X-C-S
low version with fixed jaw mobile with pendulum and adapter plates

5-axis force vise grepos-5X
important data at a glance

SizeClamping forceDimensions (Base Body)Clamping range maxWeight
grepos-5X-S L-2655 – 40 kN265 x 125 x 125 mm22 – 212 mm
21 kg
grepos-5X-S L-300
5 – 40 kN
300 x 125 x 125 mm
22 – 250 mm
22.6 kg
grepos-5X L-300
5 – 40 kN
300 x 125 x 174 mm
22 – 250 mm
30.2 kg
grepos-5X-C-S L-330
5 – 40 kN
330 x 125 x 125 mm
14 – 282 mm
24.5 kg
grepos-5X-C-S L-430
5 – 40 kN
430 x 125 x 125 mm
14 – 378 mm
28.5 kg
grepos-5X-C-S L-500
5 – 40 kN
500 x 125 x 125 mm
14 – 448 mm
30.5 kg
grepos-5X-C-S L-630
5 – 40 kN
630 x 125 x 125 mm
14 – 578 mm
35.5 kg
grepos-5X-C L-330
5 – 40 kN
330 x 125 x 174 mm
14 – 282 mm
32.5 kg
grepos-5X-C L-430
5 – 40 kN
430 x 125 x 174 mm
14 – 378 mm
36 kg
grepos-5X-C L-5005 – 40 kN
500 x 125 x 174 mm
14 – 448 mm
38.5 kg
grepos-5X-C L-6305 – 40 kN630 x 125 x 174 mm
14 – 578 mm43 kg

Three clamping options

doubble dash gressel

Clamping options
5-axis force vise grepos-5X

The grepos-5X offers the following options for mounting on the machine table integrated in the 5-axis vise. Optional: positioning and mounting holes on customer request.
Clamping with 2 fitting screws Ø12f7/M12
Alignment by precision sliding blocks 20H7 in the base body (grepos-5X) and alignment sets 14 / 16 / 18 in the T-slot of the machine table. Clamping with clamping claws
Alignment and clamping with zero point clamping system GRESSEL gredoc (2-3 locating pins)
doubble dash gressel

Gressel 5-axis force vise grepos-5x in action

Video Playlist
1/9 videos
1

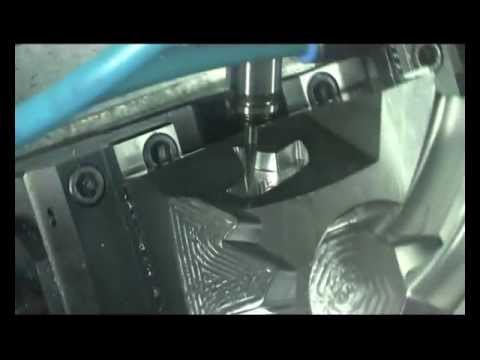

GRESSEL grepos-5X-S (during milling)
